Cleaning solution is applied to the pile via a spray nozzle and immediately vacuumed away again by a suction nozzle. In the case of stubborn dirt and stains, the affected areas are pre-sprayed to allow the cleaning agent to act for longer.
As the residual moisture content is low (no more than 10 - 15%), it is possible to walk on cleaned carpets after a short period.

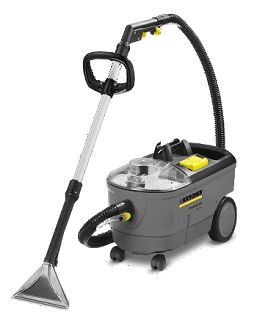

The compact Karcher Carpet Extractor (Puzzi 100) is designed for deep-cleaning carpeted floors and upholstery

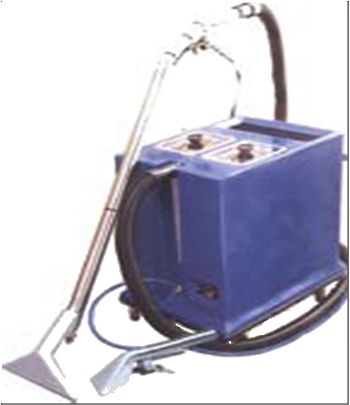

Columbus Industrial Hydrovac 40 (HSAN40) for deep-cleaning carpeted floors and upholstery
  1. A hand nozzle is used for cleaning upholstered furniture, car seats, stair carpets, etc...
  2. Hard- surface adapters enable the unit to be used for linoleum, PVC, stone and ceramic surfaces.
  3. One interesting feature of the machines is the sound-proofed service module which accommodates the easily accessible fan and pump motor. Only four screws have to be released for simple, time-saving replacement of parts for maintenance or repair.
  4. A transparent floor nozzle enables the operator to keep a constant check on the condition of the area just treated.
  5. The handle is designed in such a way that the floor nozzle can be clipped to it so that the lightweight units can be carried in one hand.
  6. The robust spray-extraction cleaners are rated for daily commercial applications:
  7. The suction hose is metal reinforced and the housing is made of tough polypropylene which is highly resistant to chemicals.

Standard Accessories;
Floor tool Hand tool 2.5 m Spray hose with integral water feed

Features:

  • 9 litre dirty water tank - Removable, easy to carry and to empty.
  • Accessory holder on the grip (floor nozzle resp. hand nozzle) - Comfortable transportation, tidied up storage.
  • Compact housing made of robust polypropylene plastic with grip - Shock proof, unbreakable, rust proof, lightweight, easy to carry.
  • Exchangeable fan protection filter - Fan is protected from dirt & damages.
  • Safe, dry running oscillating piston pump - High-performance, maintenance-free, trouble-free.
  • Tested, continuous running, two-stage bypass suction fan - High-performance revertive suction power, little residual moisture.
  • Transparent suction dome - Control of the revertive suction power.
  • TÜV/GS-approval, national and international check release - High safety and quality standard.
  • Two push buttons - spraying, vacuuming - Easy handling.
  • Removable rubber-mounted pump/fan module - Service friendly, easy exchange, very quiet.
  • Two wheels and two castors - Easy to pull even over thresholds, very maneuverable.
  • Main users of these convenient units are rental businesses, automotive workshops, contract cleaners, restaurants, hotels, retailers and private households.

Part no. 1.100-125.0
TECHNICAL SPECIFICATIONS

  1. Dimensions (L x W x H) 665 x 320 x 435 mm Max.
  2. performance 25 m²/h
  3. Weight 10,3 kg
  4. Power rating, pump 40 W Power rating, fan 1250 W Air flow rate 54 l/s
  5. Spray rate 1 l/min
  6. Vacuum 220/22 mbar/kPa
  7. Tank, fresh/dirty water 10/9 l
  8. Spray pressure/ram pressure 1-2,5 bar
  • A hand nozzle is used for cleaning upholstered furniture, car seats, stair carpets, etc...
  • Hard- surface adapters enable the unit to be used for linoleum, PVC, stone and ceramic surfaces.
  • The spray-extraction cleaners are rated for daily commercial applications:

Standard Accessories;
Floor tool Hand tool 2.5 m Spray hose with integral water feed

Features:

  • 35 litre Solution tank
  • 40 litre recovery tank


TECHNICAL SPECIFICATIONS

  1. Weight 40 kg
  2. Power rating, pump 2500 W Power rating,
